Flash density is the number of lightning flashes striking a given area over a given period, almost always expressed as flashes per square kilometer per year (flashes km⁻² yr⁻¹). It’s the standard yardstick engineers, meteorologists, and insurers use to compare lightning risk between sites, because raw storm counts tell you nothing about where the danger concentrates. A district with fewer total flashes but a smaller footprint can carry higher risk per square kilometer than a much larger area with more storms overall.

Before going further, a few quick distinctions matter:

  • Flash density vs. strike density: a single lightning flash can involve multiple ground strike points, so strike counts tend to run higher than flash counts for the same storm.
  • Flash density vs. flash-extent density (FED): FED measures the spatial footprint a flash covers, useful for satellite-based products, while point-based density counts discrete ground contact events.
  • Per-flash vs. per-strike counting: mixing the two in one calculation is a common source of overestimated risk.

Two references anchor almost everything that follows: IEC 62305, the international standard governing lightning protection design, and the World Meteorological Organization’s gridded-unit conventions, which define how raw detections become the maps and figures engineers actually use.

Key Takeaways

Flash density, expressed as flashes per square kilometer per year, converts raw lightning counts into the standardized risk metric that IEC 62305 protection design depends on.

PointDetails
Core definitionFlash density measures flashes per unit area per unit time, standardized as flashes km⁻² yr⁻¹ for engineering use.
Measurement sources varyGLM, GLD360, WWLLN, and Météorage each detect lightning differently, so cross-check grid resolution and detection efficiency.
Calculation needs consistent unitsConvert area to km² and time to years before dividing flash counts to avoid skewed results.
Site-scale data beats averagesDistrict averages can mask local hotspots caused by elevation or terrain, changing protection design outcomes.
Standards tie density to designIEC 62305 and IEC 62858 use flash density to set protection class and required sample sizes for reliable data.

Table of Contents

What Is Flash Density in Practical, Scientific Terms?

A “flash” is not the same thing as a “strike.” A single cloud-to-ground flash often produces several return strokes hitting slightly different points, or even branching to multiple ground contacts within milliseconds. Detection networks group these strokes into a single flash using time and space clustering rules, typically a fraction of a second and a few kilometers apart. That distinction matters because counting every stroke as a separate event artificially inflates the apparent density of a region.

Lightning comes in three broad categories that density products track separately:

  • Cloud-to-ground (CG): the flashes that actually reach the earth’s surface and matter most for structural protection.
  • Intra-cloud (IC): flashes that stay within or between clouds without touching ground.
  • Total lightning: the combined CG and IC count, often used for storm intensity tracking rather than ground-strike risk.

For engineering purposes, CG flash density is what drives lightning protection sizing. IC activity matters more for aviation and severe-weather forecasting, since it often precedes CG activity by several minutes.

There’s also a split in how density gets measured spatially. Flash-extent density (FED) captures the area a flash’s channel and branches cover, which the Geostationary Lightning Mapper produces on a 2×2 km fixed grid alongside average flash area and total optical energy. Point-based ground-strike density, by contrast, counts discrete contact locations from ground sensor networks. The engineering implication is straightforward:

FED tells you how much sky and ground a flash’s influence covers, which suits operational safety zones and aviation ground stops. Point-based strike density tells you how often a specific spot gets hit directly, which is what protection system design actually needs.

Conflating the two produces bad risk numbers. A facility manager pulling a FED map when they need point density will often see numbers that look higher than the actual direct-strike frequency at their exact coordinates, because FED counts the flash’s full spatial reach rather than isolated ground contacts.

How Is Flash Density Measured?

Getting from a lightning bolt to a number on a map involves four distinct steps, and understanding them explains why different data sources sometimes disagree.

  1. Detection: sensors, either ground-based antennas or satellite optical instruments, register the electromagnetic or optical signature of a lightning event.
  2. Flash grouping: software clusters individual strokes or optical pulses that occur close together in time and space into a single flash.
  3. Grid assignment: each flash gets assigned to a spatial cell, commonly 1 km, 2×2 km, or 8×8 km depending on the product.
  4. Normalization: the raw count per cell is divided by the cell’s area and the observation period to produce a density figure, usually annualized.

Four systems dominate this landscape, and each plays a distinct role:

  • Geostationary Lightning Mapper (GLM): a space-based optical sensor aboard NOAA’s GOES satellites that detects total lightning (CG and IC combined) continuously across the Western Hemisphere, gridded to 2×2 km cells.
  • Vaisala GLD360: a global ground-based network that detects CG and some IC flashes using very low frequency radio signals, feeding many national gridded products.
  • WWLLN (World Wide Lightning Location Network): a research-oriented global sensor network run through university collaborations, widely used for climate-scale lightning studies.
  • Météorage: a ground-based detection network covering Western Europe with dense sensor spacing suited to national-scale risk mapping.

Grid size choice changes what a map can show you. A 1 km grid from a CG-focused network reveals block-level hotspots but needs more years of data to be statistically reliable. An 8×8 km grid, like the National Weather Service’s operational strike density product, smooths out local variation but delivers a stable 15 or 30-minute aggregation using SI units of count per square meter per second. Temporal aggregation windows range from single-minute snapshots used for nowcasting up to full annual products used for engineering baselines.

Detection efficiency and filtering also shape the final number. CG density products derived from the U.S. National Lightning Detection Network compute a one-minute temporal average per roughly 1 km grid cell, and commonly filter out CG flashes below about 5 kA because weak-current events are often misclassified intra-cloud discharges rather than true ground strikes. Skip that filtering step and your CG counts run artificially high.

Most operational products get distributed as GRIB2 or NetCDF files, the standard formats meteorological agencies use for gridded data, readable by GIS software and specialized viewers. Resolution varies by product: satellite-derived FED tends to run finer spatially but coarser temporally than dedicated ground networks built for real-time strike alerts.

How Do You Calculate Flash Density From Raw Data?

The formula itself is simple: flash density = number of flashes ÷ (area × time). The complexity lives entirely in getting your units consistent before you divide.

  1. Confirm your flash count is deduplicated, meaning multiple strokes from one flash are counted once, not per stroke.
  2. Convert your area to square kilometers. Raw detection data often comes in square meters; divide by 1,000,000 to convert.
  3. Convert your time window to years if you’re targeting the standard flashes km⁻² yr⁻¹ unit. A 90-day summer season is roughly one quarter of a year.
  4. Divide flashes by the product of area and time.
  5. Sanity-check the result against known regional ranges before treating it as a design input.

Pro Tip:If your detection network reports raw values in SI gridded units like count per square meter per second, multiply by 1,000,000 to convert to per-square-kilometer, then multiply by the number of seconds in your time window to get a total, before dividing by years.

Here’s a worked example. Suppose a detection network logs 240 CG flashes over a 20 km² area across a three-year monitoring period. The calculation runs: 240 flashes ÷ (20 km² × 3 years) = 240 ÷ 60 = 4.0 flashes km⁻² yr⁻¹. That figure sits well above the temperate-region average and would push a protection design toward a higher risk classification under IEC 62305.

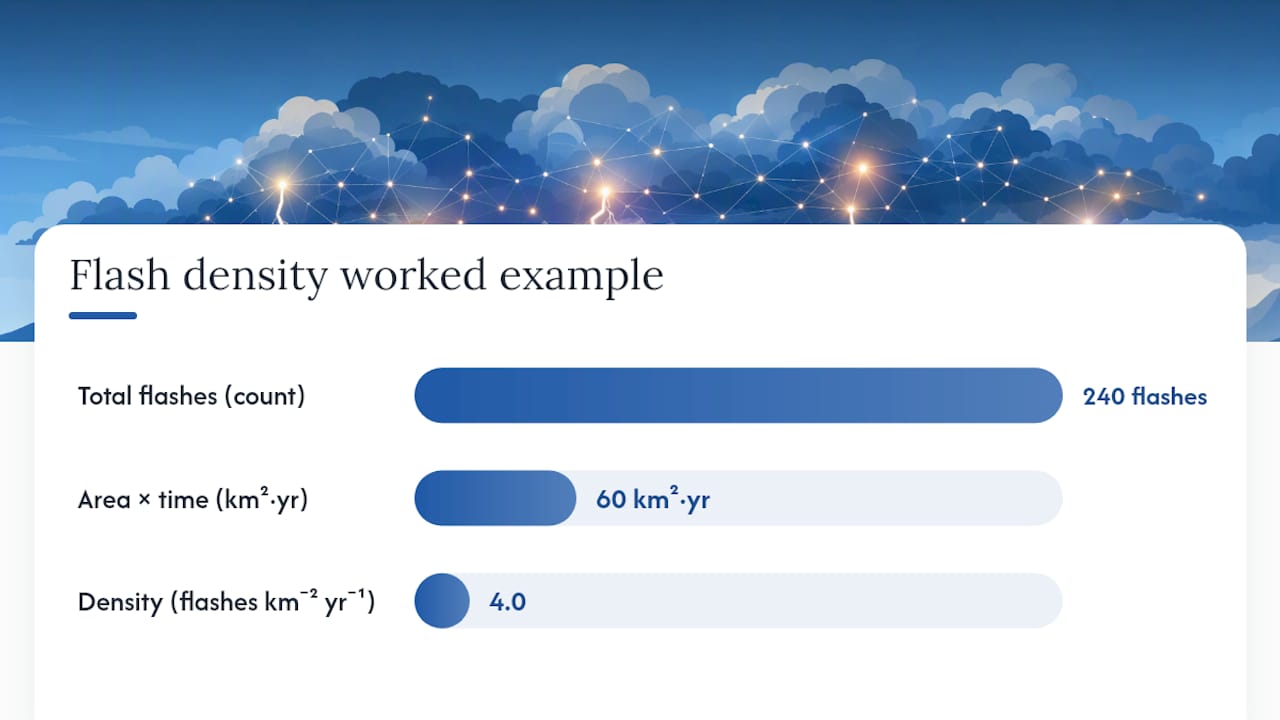

Diagram of flash density calculation from raw data

Short monitoring windows introduce real bias. A single stormy month annualized naively (multiplying a 30-day count by 12) can overstate or understate the true yearly rate by a wide margin, since lightning activity is seasonally lumpy rather than evenly distributed. Engineers working from anything shorter than a full year should treat the annualized figure as provisional and flag it as such in any report, not present it as a stable baseline.

Where Is Lightning Flash Density Highest, and How Do You Read a Map?

Global lightning activity concentrates overwhelmingly in the tropics. Central Africa, parts of the Amazon basin, and Southeast Asia post some of the highest sustained flash densities on the planet, driven by consistent convective heating and moisture. In the continental United States, Florida’s interior and the Gulf Coast see the country’s most intense activity, a product of daily sea-breeze convergence through the warm months.

Lightning striking tropical rainforest landscape

Temperate regions typically run in the range of roughly 0.5 to 3 flashes km⁻² yr⁻¹, while tropical maxima can run several multiples higher. National meteorological agencies publish these figures directly. Australia’s Bureau of Meteorology maintains annual-average thunder-day and flash-density maps that show total lightning distribution across the continent, useful both for public awareness and for engineers scoping projects there. NASA’s Global Hydrology and Climate Center publishes global flash-rate density visualizations that offer a useful worldwide overview, though site-specific design work needs finer-resolution national or commercial products, not global overview maps.

Reading a legend correctly matters as much as reading the map itself. Some products display flashes km⁻² yr⁻¹, the standard for engineering work. Others, particularly NWS operational strike products, use raw SI units of count per square meter per second. Converting between them means multiplying the SI figure by 1,000,000 for the area conversion and then by the number of seconds in a year, roughly 31.5 million, to reach an annualized per-square-kilometer figure.

Seasonal and diurnal patterns show up clearly once you look at monthly rather than annual maps. Most temperate regions see activity concentrate in a three or four-month summer window, and tropical zones often show a sharp afternoon peak tied to daily convective cycles. A map showing only the annual average will hide both patterns entirely.

How Does Flash Density Inform Lightning Protection Design and Standards?

Flash density isn’t an academic curiosity for engineers. It’s a direct input into how a lightning protection system gets sized, what class of protection a structure needs, and how much grounding infrastructure a site requires. IEC 62305 uses flash density as a core variable in its risk assessment methodology, calculating the expected frequency of lightning impacts on a structure to determine whether protection is required and at what level. IEC 62858 complements this by setting quality criteria for how lightning location systems should report density data, including guidance on grid resolution and statistical validity.

Decisions that hinge directly on accurate flash-density figures include:

  • Whether a site needs active air terminals or a passive rod-and-mesh approach.
  • The grounding system specification, including how many earth electrodes and their spacing.
  • Inspection and maintenance frequency for existing lightning protection equipment.
  • Insurance risk rating and premium calculation for facilities in high-density zones.
  • Surge protection device selection for sensitive electronic and electrical systems.

Pro Tip:Always request multi-year, site-scale gridded data rather than a broad district or regional average when scoping a protection design. A district average can mask a local hotspot driven by elevation, coastal proximity, or terrain funneling, and a facility sitting on that hotspot needs a materially different design than the district figure would suggest.

A concrete example: two facilities 15 kilometers apart in the same administrative district might show identical figures on a coarse regional map, yet one sits on an exposed ridge with a locally elevated flash density while the other sits in a sheltered valley. Design each to the district average and you’ll over-protect one site and under-protect the other. Indelec’s engineering process for lightning protection system applications starts from site-scale data specifically to avoid that mismatch, and the same logic drives technical guidelines for airport lightning protection, where a single missed hotspot has outsized consequences.

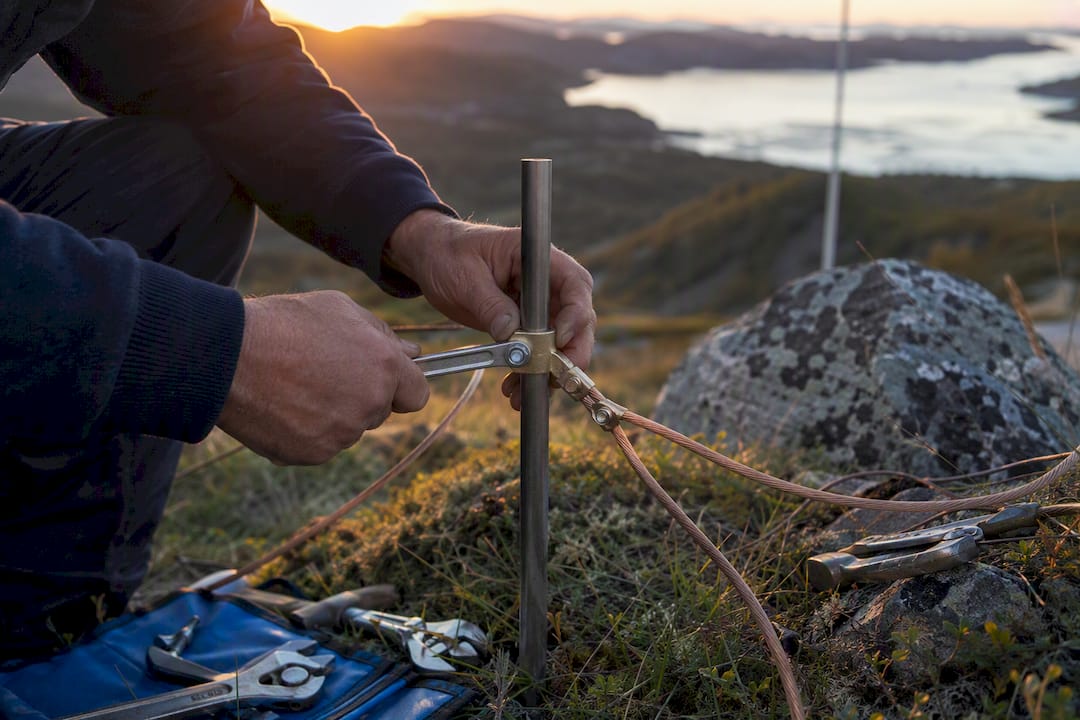

Hands installing grounding clamp on rocky ridge

What Limits the Reliability of Flash-Density Data?

No flash-density figure is perfectly clean, and treating one as gospel without checking its provenance is how risk assessments go wrong. The principal uncertainty sources are worth knowing by name:

  • Detection efficiency: no network catches 100% of flashes, and efficiency varies by region, sensor spacing, and flash type.
  • Definition mismatches: some datasets report strikes, others flashes, and conflating the two skews comparisons.
  • Small sample sizes: fine grids need long observation periods to reach statistical validity, since a rare hotspot might just be an unlucky short-term cluster.
  • Coverage gaps: ground networks thin out over oceans and remote regions, leaving satellite data as the only reliable source there.
  • Short time windows: a single stormy year can look like a permanent hotspot when it’s actually an anomaly.

Three pitfalls show up constantly in practice:

  1. Using a single year of data as a permanent baseline instead of a multi-year average.
  2. Mixing strike counts and flash counts within the same comparison or calculation.
  3. Relying on a coarse regional grid that averages away a genuine local hotspot.

Before trusting any flash-density figure for a design decision, check the dataset’s metadata for four things: the time span covered, the grid resolution used, an explicit detection efficiency statement, and any filtering thresholds applied (such as the sub 5 kA CG filtering common in NLDN-derived products). IEC 62858 recommends minimum sample sizes tied to grid choice, for example roughly 80 strikes per cell for a 3×3 km grid over a 10-year span to reach acceptable statistical confidence. If a dataset falls well short of that, treat its output as indicative rather than definitive, and consult a specialist or request raw detection data before finalizing a design.

Where Can You Find Reliable Flash-Density Data?

Choosing the right dataset depends on what you’re trying to answer. GLM works best for real-time, wide-area situational awareness since it’s space-based and covers the entire Western Hemisphere continuously. Vaisala GLD360 offers global ground-based coverage suited to commercial risk products and insurance underwriting. WWLLN serves climate researchers well thanks to its long observational record, while Météorage provides the dense ground-sensor coverage that makes it a standard reference across Western Europe. National meteorological offices, including agencies like NOAA and Australia’s BOM, publish their own gridded products built from combinations of these underlying networks.

When evaluating any dataset for a project, run through this checklist:

  • Spatial resolution: does the grid size match the scale of your decision (site-level vs. regional)?
  • Temporal resolution and archive length: is there enough history for statistical validity?
  • A stated detection efficiency figure, not just raw counts.
  • Product format: GRIB2 and NetCDF are the standards for gridded meteorological data, both readable through common GIS tools and dedicated viewers.
  • Licensing terms, since commercial-grade products often carry usage restrictions research data doesn’t.

Public operational products worth knowing include NOAA’s gridded lightning strike density output and BOM’s national maps, both useful starting points before commissioning a site-specific commercial dataset. Indelec’s overview of lightning mapping for infrastructure professionals walks through how these gridded maps get built in more technical detail.

How Do Engineers Turn Flash-Density Maps Into Design Decisions?

Translating a density figure into an actual protection system follows a consistent workflow in professional practice:

  • Obtain multi-year gridded density data specific to the site’s coordinates, not a district-wide average.
  • Validate the dataset’s stated detection efficiency and confirm the grid resolution matches the site’s scale.
  • Compute the site-level annual flash density using the formula and conversions outlined above.
  • Select the appropriate protection class per IEC 62305 based on the calculated risk level.
  • Verify the design assumption with on-site instrumentation, such as digital flash counters or remote monitoring systems, once installed.

Pro Tip:Don’t treat the initial density calculation as a one-time input. Feeding post-installation monitoring data back into the maintenance schedule catches cases where the site’s actual exposure runs higher than the original dataset suggested.

This loop, from remote gridded data to site-specific calculation to physical verification, is what separates a defensible engineering design from a rough estimate pulled off a national map. It’s also why granular data and on-site validation both matter more than either one alone. Indelec’s approach to protecting highly sensitive installations leans on exactly this sequence when the cost of an under-protected design is unacceptably high.

Ready to Apply Flash-Density Data to Your Site?

Flash density gives you the number, but turning that number into a compliant, properly sized protection system takes engineering judgment IEC 62305 alone doesn’t spell out. Indelec’s technical consulting team combines site-scale gridded density data with over seventy years of protection system design experience to specify the right air terminal class, grounding configuration, and surge protection strategy for your facility. The company’s Prevectron3 active air terminal uses patented OptiMax technology designed around exactly this kind of risk-informed sizing, and Indelec’s broader consulting and installation services cover everything from initial risk assessment through certification. If your facility sits in a district you suspect masks a local hotspot, that’s precisely the gap a site-specific assessment closes.

What This Explainer Gets Right That Most Guides Miss

Most explanations of flash density stop at the definition and skip the part that actually determines whether a design is safe: the gap between a raw dataset and a defensible engineering number. The research behind this piece points to one conclusion worth stating plainly. A flash-density figure without a stated detection efficiency, grid resolution, and time span isn’t a number you can design against, it’s a placeholder.

The conventional shortcut, pulling a regional average off a public map and calling the risk assessment done, fails precisely where it matters most: local hotspots created by terrain, elevation, or coastal exposure. Those get averaged away in coarse grids and show up only in site-scale, multi-year data.

If you take one thing from this, prioritize the metadata before the map. Ask what grid size was used, how many years it covers, and what detection efficiency the provider states. A precise-looking number built on thin data is more dangerous than an honest estimate with its limitations stated upfront.

Frequently Asked Questions

What is flash density in simple terms?
Flash density is the count of lightning flashes hitting a specific area over a specific time period, standardized as flashes per square kilometer per year for engineering and risk work.

How is flash density different from lightning frequency?
Lightning frequency often refers to the total number of flashes over a wide region or time period without normalizing to area, while flash density always divides that count by both area and time, making it comparable across different locations.

What unit is flash density measured in?
The standard engineering unit is flashes km⁻² yr⁻¹. Some meteorological products instead use SI gridded units of count per square meter per second, which require conversion before comparing to engineering figures.

Why does flash density matter for lightning protection design?
IEC 62305 uses flash density to calculate the expected frequency of lightning strikes on a structure, which determines what protection class and grounding specification a facility needs.

Can flash density change significantly within a small area?
Yes. Elevation, coastal proximity, and terrain can create local hotspots that a broader regional average completely masks, which is why site-scale gridded data outperforms district-level figures for design work.

How many years of data do you need for a reliable flash-density figure?
Multi-year datasets, commonly up to ten years, produce more stable baselines than single-year snapshots, since lightning activity fluctuates considerably from year to year.
