Why Protection Level Selection Matters for Safety and Compliance

TL;DR:

• Proper protection-level selection, supported by a documented needs assessment, ensures compliance and safety in lightning and surge protection systems. Standards like IEC 62305, NFPA 780, UL 1449, and IEEE C62.41 guide level assignments and require verifiable evidence for audit purposes. Accurate classification, testing, and documentation are essential to proving protection performance and avoiding organizational liability.

Correct protection-level selection is the single factor that separates a lightning and surge protection system that satisfies safety obligations and survives an audit from one that either exposes people and operations to real risk or wastes capital on over-engineered controls. Standards like IEC 62305, NFPA 780, UL 1449, and IEEE C62.41 each define what a protection level requires you to prove, not just claim. The practical next step is straightforward: commission a documented protection needs assessment that maps every asset to a protection level and specifies the evidence required to back each claim.

Key obligations at a glance:

• IEC 62305 defines four Lightning Protection Levels (LPL I–IV) tied to rolling sphere radius, mesh size, and separation distance.
• NFPA 780 governs lightning protection installation in the U.S. and determines when a system is code-compliant.
• UL 1449 sets the performance and safety standard for surge protective devices (SPDs) sold in the U.S. market.
• IEEE C62.41 categorizes the surge environment at a site and guides SPD selection for that environment.
• A documented protection needs assessment is the audit-grade starting point for any level assignment.

Table of Contents

• What “protection level” actually means for lightning and surge protection
• Essential standards, codes, and evidence you must reference in the United States
• How to assess your protection needs systematically
• How protection levels map to concrete measures you need to install
• Common selection mistakes, audit traps, and why documented evidence matters
• Cost drivers, maintenance requirements, and lifecycle considerations
• Practical checklist for specifying and procuring protection
• Key Takeaways
• Why evidence beats labels every time
• Indelec’s protection-level services: from assessment to certified installation
• Useful sources and where to get test documentation

What “protection level” actually means for lightning and surge protection

The phrase “protection level” covers two distinct but related concepts in electrical protection, and confusing them is one of the most common specification errors.

In lightning protection (LPS), a protection level corresponds to a Lightning Protection Level (LPL) defined under IEC 62305. Each LPL specifies the maximum and minimum lightning current parameters a system must intercept, along with the physical geometry of the external LPS: rolling sphere radius, mesh width, and required separation distance between the LPS and internal systems. LPL I is the most demanding, designed for the highest-risk structures; LPL IV is the minimum, suited to lower-risk buildings. NFPA 780 uses a parallel risk-based approach for U.S. installations, requiring a site-specific risk assessment before any level is assigned.

In surge protection, the concept splits further. UL 1449 classifies SPDs by Type (1, 2, or 3) based on installation location and intended function, not by a single “level” number. Type 1 devices are installed at the service entrance and must handle the full lightning impulse current (Iimp); Type 2 devices protect distribution boards; Type 3 devices protect sensitive equipment at the point of use. The voltage protection level (Up) is the critical performance parameter: it is the maximum voltage an SPD will allow to pass through to downstream equipment during a surge event. IEEE C62.41 adds another layer by categorizing the surge environment itself (Categories A, B, and C) based on location within a facility, which directly informs which SPD parameters are appropriate.

These two protection objectives intersect in practice. A high-exposure industrial site needs a coordinated external LPS (air terminals, down conductors, earth termination) combined with a cascaded SPD system (Type 1 at the service entrance, Type 2 at sub-distribution, Type 3 at sensitive loads). The SPD selection hinges on parameters shown in datasheets — Iimp, In, Up, and coordination — because placement and coordination determine actual protective performance, not the label on the box.

Essential standards, codes, and evidence you must reference in the United States

Every protection-level decision in the U.S. must be traceable to at least one of the following standards. Auditors and inspectors will ask for the specific clause that justified your level assignment.

• IEC 62305 (Parts 1–4): The international framework for LPS design. Part 2 defines the risk assessment methodology; Part 3 covers physical LPS components; Part 4 addresses protection of electrical and electronic systems inside structures. While not a U.S. code, it is widely referenced in engineering specifications and is the basis for most manufacturer datasheets.
• NFPA 780 (Standard for the Installation of Lightning Protection Systems): The primary U.S. code for lightning protection. The 2026 edition includes updated risk assessment requirements and prescribes installation methods, bonding, and grounding for structures ranging from ordinary buildings to hazardous locations. AHJ acceptance typically requires NFPA 780 compliance.
• UL 1449 (Standard for Surge Protective Devices): The U.S. product safety standard for SPDs. Any SPD installed in a U.S. facility should carry a UL 1449 listing. The standard requires manufacturers to publish the nominal discharge current (In), maximum continuous operating voltage (MCOV), and voltage protection level (Up) on the datasheet.
• IEEE C62.41 (Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits): Provides the surge environment categories (A, B, C) that define the expected surge waveforms and amplitudes at different points in a facility. Use it to match SPD ratings to the actual surge environment rather than guessing.
• IEC 62443 (Industrial Automation and Control Systems Security): Increasingly referenced for operational technology (OT) and process-safety environments. Security levels under IEC 62443 determine which requirements apply and how extensively testing must be conducted — mis-selection risks either vulnerability or excessive cost.

What auditors and inspectors will expect to see: SPD datasheets showing Iimp and Up values, UL 1449 listing certificates, IEC component test reports, installation photographs, earthing resistance test records, and a signed certificate of compliance. When a local building code or authority having jurisdiction (AHJ) mandates a higher minimum than the standard default, that requirement must be recorded in the project risk register with the specific code reference and the name of the official who confirmed it.

Pro Tip:Always confirm with the AHJ before finalizing a protection-level specification. Some jurisdictions impose stricter requirements for healthcare facilities, data centers, and hazardous locations that go beyond NFPA 780 defaults.

How to assess your protection needs systematically

A protection needs assessment classifies assets by damage impact into Normal, High, and Very High categories to drive proportional investments and audit traceability. The method requires evaluating each asset against three protection goals separately: confidentiality, integrity, and availability. Different goals require different measures, and a supporting system inherits the highest protection need of the assets it serves.

Asset classification table

Assessment checklist

Gather the following for each asset before assigning a protection level:

• Asset criticality rating (safety-critical, business-critical, or general)
• Connectivity to external networks or field devices
• Physical exposure to the environment (rooftop, outdoor, high-altitude, coastal)
• People-safety implications if the asset fails during a lightning or surge event
• Replacement cost and lead time
• Downtime impact in dollars per hour and regulatory consequences
• Contractual or regulatory constraints that mandate a minimum protection level
• Inheritance: does this asset support a higher-category asset? If so, it adopts the higher category.

Link the assessment output to zone and conduit definitions. Applying IEC 62443-style thinking, each zone boundary becomes a point where a protection measure (SPD, bonding bar, or shielded conduit) must be installed and documented. This ties the level assignment directly to the physical architecture, which is exactly what an auditor will trace.

Pro Tip:Document who has the authority to accept residual risk and where that acceptance is recorded. Assigning a protection level is a design requirement, but it does not automatically make residual risk acceptable — that acceptance requires formal managerial authority and must be recorded in the safety case or risk register.

How protection levels map to concrete measures you need to install

Once asset categories are set, the level assignment drives specific, inspectable hardware and configuration requirements. The table below maps exposure category to recommended measures across the main protection domains.

Protection level to measures mapping

Device specification checklist

For every SPD in the design, verify the following from the manufacturer’s datasheet and test certificate:

• Iimp (impulse current, 10/350 µs waveform) for Type 1 devices — confirms the device can handle a direct lightning partial current
• In (nominal discharge current, 8/20 µs) for Type 2 devices
• Up (voltage protection level) — must be below the equipment’s withstand voltage (Uw)
• Nominal discharge current and maximum discharge current
• UL 1449 listing number and IEC 61643-11 test certificate reference
• Response time (typically <25 ns for Type 1+2 combined devices)
• Short-circuit current rating (SCCR) matching the installation point
• Thermal protection and end-of-life indication

SPD coordination means the Type 1 device clamps the initial surge, the Type 2 device handles the residual, and the Type 3 device protects the final load. Without coordination, a Type 2 device at the service entrance may absorb more energy than it is rated for and fail silently. The step-by-step surge control methodology for classifying energy assets reinforces this cascading logic: each stage must be sized for what the upstream stage passes through, not for the original surge amplitude.

For earthing, a resistance target of ≤10 Ω is the NFPA 780 general requirement, but process-safety and data-center environments typically specify ≤1 Ω. When soil resistivity is high (rocky terrain, sandy coastal sites), deep-earth drilling or chemical ground enhancement is the only reliable path to that target.

Common selection mistakes, audit traps, and why documented evidence matters

The most consequential mistake in protection-level work is claiming a level without the evidence to back it. Auditors now expect verifiable testing and regression records, not just a label on a drawing.

Common errors

• Assigning levels without a formal assessment: Defaulting to LPL II for every building on a campus because “it seems reasonable” is not a defensible position when a loss event triggers an insurance or regulatory investigation.
• Claiming capability without test evidence: A vendor who says their SPD is “Type 1 rated” but cannot produce a UL 1449 listing or IEC 61643-11 test report is making an unverifiable claim.
• Applying one level across all zones: A single protection level for an entire facility ignores the fact that a server room and a parking structure have fundamentally different exposure and consequence profiles.
• Ignoring protection need inheritance: A general-purpose UPS that supports a safety-critical control system must be protected at the safety-critical level, not the general-purpose level.
• Treating levels as static: As systems change, level targets and evidence must be reviewed. Protection-level misalignment commonly stems from treating levels as permanent once assigned.
• Missing residual risk sign-off: A completed installation with no named authority accepting residual risk is an open liability.

Required documentation package

Demand the following from every contractor or vendor before accepting a completed installation:

• Manufacturer datasheets for every SPD (showing Up, Iimp or In, SCCR, and listing numbers)
• Third-party test reports (UL, IEC, or equivalent accredited lab)
• Installation records with photographs (conductor routing, bonding connections, SPD locations)
• Earthing resistance test records (date, method, result, instrument calibration certificate)
• Inspection certificate signed by a qualified engineer
• Maintenance log template with scheduled intervals
• Named authority sign-off on residual risk

For electrical safety investments to deliver real value, the documentation package must be as complete as the hardware installation itself. A system with no paper trail is, from a compliance standpoint, a system with no protection level at all.

Cost drivers, maintenance requirements, and lifecycle considerations

Protection-level selection directly shapes the capital and recurring budget. Getting the level right the first time avoids both the cost of a loss event and the cost of retrofitting an under-specified system.

Typical cost drivers

• Target protection level: Moving from LPL IV to LPL I roughly doubles the air terminal count, increases down conductor requirements, and demands a much lower earthing resistance target.
• Site exposure: Coastal, high-altitude, and open-terrain sites face higher ground flash density and may require a higher LPL than an identical building in a sheltered urban location.
• Air terminal quantity and type: ESE air terminals (such as Indelec’s Prevectron3) can reduce the number of down conductors needed compared to a Franklin rod mesh, which affects both material and labor costs.
• Deep-earth grounding: When soil resistivity is high, achieving ≤1 Ω may require specialized drilling. This is a significant cost driver that should be identified in the assessment phase, not discovered during installation.
• SPD cascade complexity: A full Type 1+2+3 cascade across a large facility involves more devices, more coordination labor, and more testing time than a single-point Type 2 installation.
• Testing and certification fees: Third-party testing, earthing resistance measurement, and certificate of compliance issuance are recurring costs that must be budgeted from day one.

Recommended maintenance schedule

SPDs have a finite service life. High-exposure sites and those that experience frequent surge events will see SPDs reach end-of-life faster than the manufacturer’s nominal rating suggests. Budget for replacement cycles, not just initial installation. Climate trends are also a real factor: increasing storm frequency and intensity in many U.S. regions means that a protection level assigned in 2015 may no longer be proportionate to the current exposure. Prioritizing protection upgrades requires periodic reassessment of both the threat environment and the condition of installed equipment.

Practical checklist for specifying and procuring protection

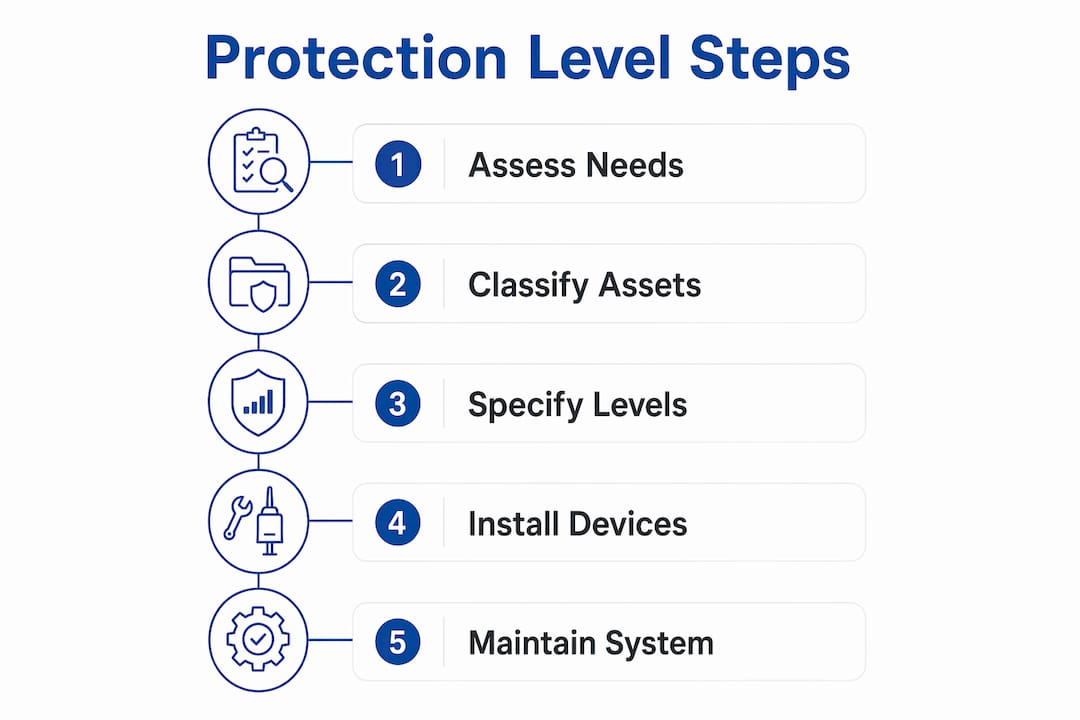

Use this sequence when writing an RFP, reviewing a bid, or conducting acceptance testing.

Procurement steps

1. Confirm asset classification: Attach the completed protection needs assessment to the RFP. Every zone must have a documented protection category (Normal / High / Very High) with the damage scenario that justifies it.
2. Set zone-level targets: Specify the required LPL per IEC 62305 or NFPA 780 risk assessment outcome for each zone, and the required SPD types and Up values for each distribution point.
3. Require the evidence package: State in the RFP that bids must include manufacturer datasheets (Up, Iimp/In, SCCR, listing numbers), third-party test certificates, and a proposed inspection and maintenance plan.
4. Test before acceptance: Require earthing resistance measurement, SPD installation verification, and a walk-through inspection against the installation drawings before signing off.
5. Accept and schedule maintenance: Issue the certificate of compliance only after all test results meet the specified targets. Schedule the first maintenance inspection and record it in the asset management system.

Vendor questions to ask

• Can you provide the UL 1449 listing certificate and IEC 61643-11 test report for every SPD in this design?
• What is the Up value for each SPD, and how does it compare to the equipment withstand voltage (Uw) at each protected load?
• Who will sign the certificate of compliance, and what qualifications do they hold?
• What is the warranty period, and what triggers an SPD replacement under warranty?
• Does your maintenance contract include earthing resistance testing and documentation?

Red flags in bids

• Vague test claims (“meets all applicable standards”) with no specific listing numbers or test report references
• Missing datasheets for SPDs, or datasheets that omit Up or Iimp values
• No named engineer signing off on the installation or the residual risk acceptance
• No inspection or maintenance plan included in the scope
• A single protection level applied to the entire facility with no zone differentiation

For electrical inspection guidance on what a thorough acceptance check should cover, a structured checklist approach ensures nothing is missed before sign-off.

Key Takeaways

Correct protection-level selection requires a documented needs assessment, zone-specific level targets, verifiable test evidence, and a named authority accepting residual risk — without all four, no protection system is audit-grade.

Why evidence beats labels every time

The conventional wisdom in lightning and surge protection is that specifying the right standard is the hard part. Get IEC 62305 or NFPA 780 on the drawing, pick a protection level, and the work is done. That view is wrong, and it is wrong in a way that creates real organizational liability.

A protection level is a design target, not a guarantee. The gap between a claimed level and a proven level is exactly where loss events, insurance disputes, and regulatory findings live. Standards set the design requirements and define how extensively testing must be conducted, but they stop short of declaring residual risk acceptable. That acceptance requires a named manager with documented authority, a recorded decision, and a maintenance commitment that keeps the evidence current.

What Indelec has seen repeatedly in the field is that facilities with the right hardware but no documentation package are functionally unprotected from a compliance standpoint. An auditor who cannot trace a protection level back to a damage scenario, a datasheet, a test record, and a sign-off will treat the system as unverified. The hardware may be excellent. The protection level, legally and operationally, does not exist.

The practical implication: treat protection-level selection as a governance process, not a technical checkbox. The engineer specifies the level. The contractor installs and tests. The documentation package proves it. And a named authority in plant or asset management accepts what remains. That chain of accountability is what makes a protection system defensible when it matters most.

Indelec’s protection-level services: from assessment to certified installation

Specifying the right protection level is one thing. Having the evidence package to prove it is another. Indelec delivers both, from the initial protection needs assessment through to certified installation and long-term maintenance.

Indelec’s service scope covers every stage of the protection lifecycle: documented protection needs assessments, LPS design and installation using the Prevectron3 air terminal and related systems, SPD selection and cascade design, deep-earth grounding drilling for high-resistance soil conditions, and inspection and certification services that produce the documentation package auditors and insurers expect. Every installation comes with manufacturer test evidence, a certificate of guarantee, and a maintenance contract structured to keep the assigned protection level valid through the system’s full service life.

For facilities where the stakes are highest — process plants, data centers, healthcare infrastructure — Indelec’s approach to protecting highly sensitive installations means the protection level is not just specified: it is proven, documented, and maintained. Request a protection needs assessment or download product datasheets and test certificates directly through Indelec’s services page.

Useful sources and where to get test documentation

The standards and guidance below are the authoritative references for protection-level selection in the U.S. market. Cite them in tender documents and procurement specifications.

• IEC 62305 (Parts 1–4): Available from the IEC webstore. Part 2 (risk assessment) and Part 3 (physical LPS) are the most frequently cited in U.S. engineering specifications. Use Part 4 for protection of internal electrical and electronic systems.
• NFPA 780 (Standard for the Installation of Lightning Protection Systems): Available from NFPA. The current edition is the governing U.S. installation code; confirm the edition your AHJ references before specifying.
• UL 1449: Available from UL Standards. Verify SPD listings in the UL Product iQ database before accepting a bid — listing numbers on datasheets can be checked against the live database.
• IEEE C62.41: Available from IEEE Xplore. Use it to establish the surge environment category (A, B, or C) at each installation point before selecting SPD parameters.
• Manufacturer test reports and certificates of conformity: Request these directly from the manufacturer or their authorized distributor. For Indelec products, datasheets, test certificates, and the Prevectron3 certificate of guarantee are available through Indelec’s lightning standards resource. When citing certificates in tender documents, include the certificate number, issuing laboratory, and date of issue.
• Third-party test labs: UL, Intertek, TÜV Rheinland, and MET Laboratories are accredited to test SPDs to UL 1449 and IEC 61643-11. Specify that test reports must come from an accredited lab, not from in-house manufacturer testing alone.
• Indelec standards and application resources: The top electrical protection standards guide provides practical examples of how standards apply in real projects, useful for procurement teams building specification language.
