NF C 17-102: Practical Compliance Guide for Engineers

NF C 17-102:2011 is the French normative reference for Early Streamer Emitter (ESE/PDA) lightning protection systems, covering everything from protection radius calculations to installation rules and maintenance documentation. If you are designing, installing, or verifying a PDA-based system in France, this is the standard that governs your work, and the 2011 edition is the version in force.

Three things matter most before you go any further:

• Use NF C 17-102:2011 for all technical studies carried out since October 2011. Per the QUALIFOUDRE/INERIS professional guidance, qualified professionals (F2C/QUALIFOUDRE) are explicitly required to apply this edition.
• Apply a 40% safety coefficient to Rp for installations subject to the October 4, 2010 decree. This affects device siting and the total number of air terminals required.
• Prepare a compliant dossier d’exécution (DOE) that includes site data, Rp calculations, manufacturer test certificates, as-built drawings, and measurement results. Without it, your installation cannot pass verification.

The NF C 17-102 standard is available directly from AFNOR. Installer qualifications (QUALIFOUDRE or F2C certification) are expected on any regulated site.

Key Takeaways

NF C 17-102:2011 governs every PDA/ESE lightning protection study in France, and compliance depends on applying the correct Rp formula, the right D value for the protection level, and a complete DOE with traceable manufacturer test certificates.

Table of Contents

• What does NF C 17-102 actually cover, and which version applies?
• How NF C 17-102 fits with IEC 62305, NF C 17-100, and other references
• How ESE/PDA devices work and which parameters you must gather
• How to calculate the protection radius Rp under NF C 17-102
• What the standard requires for installation design
• Dossier d’exécution, verification sequence, and maintenance intervals
• What Annex C requires and how to assess manufacturer certificates
• Tools, maps, and references practitioners need before finalizing a study
• Indelec’s field checklist for a compliant dossier d’exécution
• What practitioners consistently get wrong on real projects
• Indelec delivers compliant PDA/ESE installations from study to maintenance
• Sources

What does NF C 17-102 actually cover, and which version applies?

The current edition is NF C 17-102:2011, published in September 2011 and originating from a July 1995 first edition. AFNOR’s product record confirms the clause structure: scope, definitions, design rules, conductor specifications, earthing, verification and maintenance, and five annexes (A through E), including Annex B for Ng maps and Annex C for test procedures.

Scope. The standard applies specifically to paratonnerres à dispositif d’amorçage (PDA), the French term for ESE devices. It governs the protection of structures and open areas using these systems. It does not cover Franklin rods, mesh conductors, or catenary wire systems — those fall primarily under IEC 62305 or NF C 17-100.

Key terms you will use throughout any study:

• PDA/ESE: Paratonnerre à Dispositif d’Amorçage / Early Streamer Emitter — the air terminal technology this standard governs.
• ΔT: The advance time in microseconds that characterizes a PDA device’s ionization lead over a conventional Franklin rod.
• Rp: The protection radius in meters, calculated from the device height, protection level, and ΔT.
• Protection levels I–IV: Four levels of protection, each associated with a specific D value that drives the Rp formula.
• Dossier d’exécution (DOE): The complete technical file that documents the design, installation, and verification of the system.

For legacy installations designed before October 2011, earlier editions of the standard may still be referenced for maintenance purposes, but any new study or significant modification must use the 2011 edition.

How NF C 17-102 fits with IEC 62305, NF C 17-100, and other references

The choice of normative framework depends on the technology you are installing, not on personal preference or client habit. NF C 17-102 is the French reference for PDA/ESE systems. The IEC 62305 series is the international framework most commonly applied to Franklin rods, mesh conductors, and catenary systems. In France, both coexist, and the lightning protection system application decision comes down to the technology type and the project’s regulatory constraints.

Complementary standards and what each covers:

• NF C 17-100: The older French standard for conventional lightning protection (Franklin rods, mesh). Still referenced for legacy systems and for sites where the client or regulator specifies it.
• IEC 62305 series (parts 1–4): International standard covering risk assessment (Part 2), physical damage and life hazard (Part 3), and electrical and electronic systems (Part 4). Used for Franklin rod and mesh designs, and increasingly specified on international or cross-border projects.
• NF EN 62561: Covers lightning protection components (conductors, clamps, earth electrodes, isolating spark gaps). Referenced in both NF C 17-102 and IEC 62305 for material and component specifications.

Practical decision rules for designers:

• If the client specifies a PDA/ESE device, apply NF C 17-102:2011.
• If the project uses Franklin rods, mesh, or a catenary system, apply IEC 62305 (and NF C 17-100 where required by the regulator or client).
• If the site is subject to the October 4, 2010 decree (classified installations, ICPE), confirm whether NF C 17-102 or IEC 62305 is mandated — and apply the 40% safety coefficient to Rp under NF C 17-102 if that decree applies.
• For documentation, the DOE structure expected under NF C 17-102 differs from the lightning protection level (LPL) documentation under IEC 62305. Do not mix the two frameworks in a single study without explicit justification.

When a project requires both ESE devices and surge protection for internal systems, NF C 17-102 handles the external protection while IEC 62305 Part 4 governs the internal protection measures. The two frameworks are complementary at that boundary, not interchangeable.

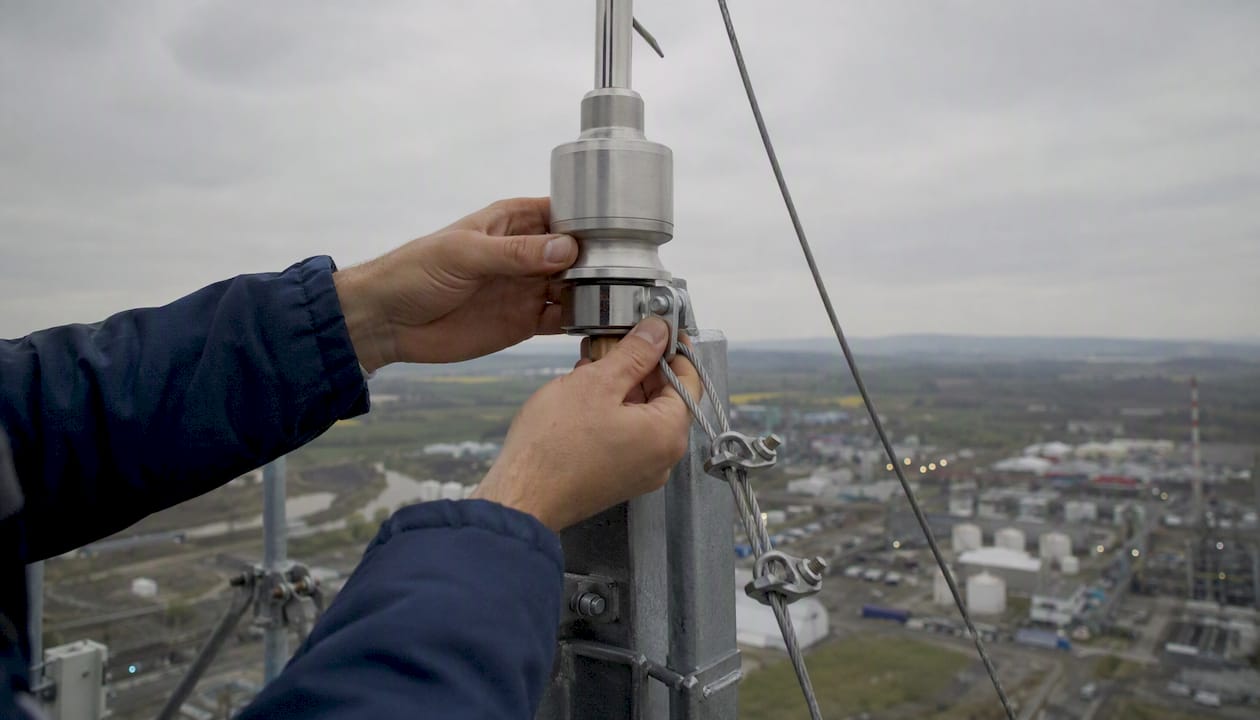

How ESE/PDA devices work and which parameters you must gather

The Early Streamer Emission principle rests on one claim: a PDA device initiates an upward leader earlier than a conventional rod of the same height, giving it a measurable head start in intercepting the downward stepped leader from a thundercloud. That head start is expressed as ΔT, in microseconds.

The conversion from time to distance is straightforward: ΔL = v × ΔT, where v ≈ 1 m/μs (the propagation speed of the upward leader). A device with ΔT = 60 µs therefore gains ΔL = 60 m of additional reach compared to a Franklin rod at the same mounting height. That additional reach feeds directly into the Rp formula.

Manufacturers report ΔT from laboratory tests conducted under Annex C conditions. The value is not a marketing figure — it is a measured parameter tied to a specific test protocol, and it must appear in the manufacturer’s test certificate with the test lab’s accreditation reference. If a certificate does not state ΔT with a traceable test reference, the value cannot be used in your calculations.

Testable PDAs add an important maintenance dimension. These devices include an electronic module that logs or signals post-impact events, allowing a technician to verify device functionality without a full laboratory re-test. On industrial sites or any installation where rooftop access is restricted or costly, specifying a testable PDA from the outset reduces the burden of periodic complete verifications significantly.

Pro Tip:When requesting manufacturer documentation, ask specifically for the test report reference number, the accredited laboratory name, the measured ΔT value (not the “claimed” or “nominal” value), and the environmental class. These four items are the minimum needed to populate the DOE and to validate the Rp calculation in your study.

How to calculate the protection radius Rp under NF C 17-102

The Rp formula, as documented in public summaries and cross-checked against the normative text, is:

Rp = √(h × (2D − h) + (ΔL)²) − √((D − h)² + (ΔL)²)

Where:

• Rp = protection radius at ground level (meters)
• h = height of the PDA tip above the plane to be protected (meters)
• D = standard distance for the chosen protection level (meters)
• ΔL = additional reach from ESE advance time (meters), calculated as ΔL = v × ΔT with v = 1 m/µs

The Wikipedia NF C 17-102 page reproduces this formula and the D values as a useful cross-check, though all critical figures should be confirmed against the AFNOR normative text.

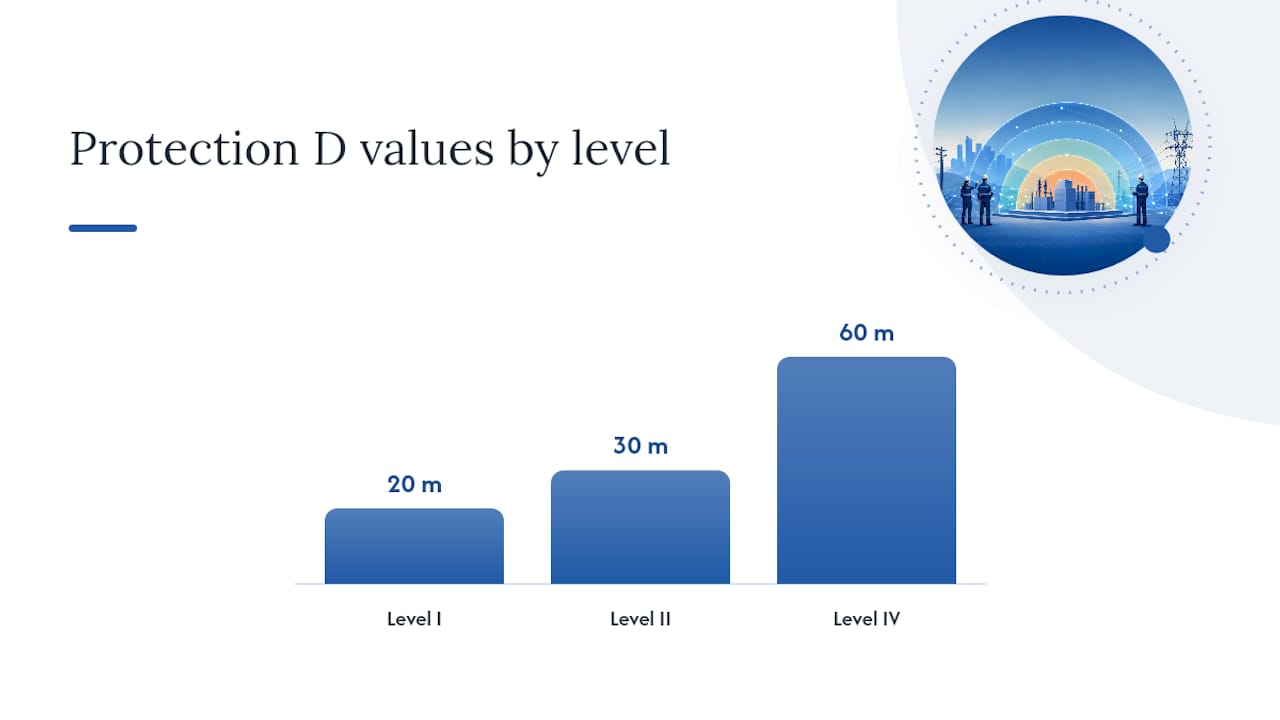

D values by protection level

Higher protection levels (Level I) use a smaller D, which produces a smaller Rp for a given height. This is counterintuitive at first glance: Level I is the most demanding, so it yields the smallest protection radius, requiring more devices or greater mounting height to cover the same area.

Worked example

Given: h = 5 m, ΔT = 60 µs, Protection Level II (D = 30 m)

1. ΔL = 1 × 60 = 60 m
2. First term: √(5 × (2 × 30 − 5) + 60²) = √(5 × 55 + 3600) = √(275 + 3600) = √3875 ≈ 62.25 m
3. Second term: √((30 − 5)² + 60²) = √(625 + 3600) = √4225 = 65.00 m
4. Rp = 62.25 − 65.00 = −2.75 m

A negative result here means the device at h = 5 m with ΔT = 60 µs does not achieve a positive protection radius at ground level for Level II. Increase h to 6 m:

1. First term: √(6 × (2 × 30 − 6) + 3600) = √(6 × 54 + 3600) = √(324 + 3600) = √3924 ≈ 62.64 m
2. Second term: √((30 − 6)² + 3600) = √(576 + 3600) = √4176 ≈ 64.62 m
3. Rp = 62.64 − 64.62 = −1.98 m

Still negative. This illustrates a common trap: designers sometimes assume any positive h will yield a usable Rp. The formula requires h to be large enough relative to D and ΔL. For Level II with ΔT = 60 µs, a mounting height of around 2 m above the roof surface typically yields a positive Rp only when the device is elevated on a mast. Always run the numbers before specifying a mast height.

Critical reminder: For sites subject to the October 4, 2010 decree, apply a safety coefficient to the calculated Rp before using it to determine device placement and coverage. This reduces the effective radius and typically increases the number of devices required.

What the standard requires for installation design

NF C 17-102 specifies the full system, not just the air terminal. Every component from the PDA tip to the earth electrode must meet defined requirements, and those requirements must be reflected in the execution drawings and tender documents.

Mandatory system components:

• One or more PDA air terminals, positioned to achieve the required Rp coverage with no unprotected zones.
• Down-conductors connecting the air terminal to the earth electrode, routed to minimize impedance and equipotential differences.
• Earth electrodes (prises de terre) meeting the standard’s resistance and geometry requirements.
• Equipotential bonding connections at the base of each down-conductor and at any metallic structure penetrating the protection zone.
• Surge protection devices (SPDs) for internal electrical systems where required by the risk assessment.

Down-conductor rules. The standard recommends at least two down-conductors for most structures, routed as straight and vertical as possible. Bends and loops increase impedance and create side-flash risk. Conductors must be mechanically protected in accessible areas (typically the first 2 m above grade) and must not share a path with other sensitive cables. Separation distance from data or power cables must be calculated and documented.

Grounding. The DOE must specify the earth electrode type (ring, radial, or deep electrode), the material (copper, galvanized steel, or stainless steel depending on soil corrosivity), and the target resistance value. The standard does not mandate a single resistance threshold for all cases — the value depends on the protection level and the risk assessment. Deep earth grounding drilling is sometimes required on high-resistivity soils to achieve the target.

Separation distances. Calculate the separation distance s between the down-conductor and any parallel metallic structure or sensitive equipment using the formula in the standard. Insufficient separation is one of the most common noncompliance findings during verification.

Installation checklist items for drawings and site instructions:

• PDA device model, ΔT value, and mounting height confirmed on plan.
• Down-conductor routing shown on elevation drawings with bend radii noted.
• Earth electrode type, depth, and resistance target specified.
• Equipotential bonding points identified on structural drawings.
• Separation distances calculated and annotated on plans.
• Material specifications (conductor cross-section, clamp types per NF EN 62561) listed in the bill of materials.
• Access provisions for future maintenance (roof hatches, fixed ladders) noted.

Pro Tip:Before the verification visit, walk the conductor route from the PDA tip to the earth electrode and check three things: no sharp bends tighter than the standard allows, no shared cable trays with power or data cables within the required separation distance, and the earth electrode test link is accessible and labeled. These three checks catch the majority of noncompliance findings before the verifier arrives.

Dossier d’exécution, verification sequence, and maintenance intervals

The DOE is not optional paperwork. NF C 17-102 requires it, and without a complete DOE, a third-party verifier cannot approve the installation. Here is what it must contain and how verification works.

1. DOE contents

The dossier d’exécution must include: site identification data (address, structure type, occupancy, Ng value from Annex B maps), the risk assessment justifying the protection level chosen, the Rp calculation with all variables stated (h, D, ΔT, ΔL, and the safety coefficient where applicable), manufacturer test certificates for the PDA device (with traceable serial numbers and accredited lab reference), as-built drawings showing device placement, conductor routing, and earth electrode layout, and the results of commissioning measurements (earth resistance, continuity tests).

2. Verification sequence

The standard defines three ordered verification types:

• Initial verification: Carried out at commissioning, before the installation is put into service. Covers all components, measurements, and document review. The verifier checks that the installation matches the DOE and that all measurements meet the standard’s requirements.
• Visual verification: Periodic check (typically annual) covering visible components — conductor condition, clamp integrity, device housing, bonding connections, and any physical damage. Does not require earth resistance measurement.
• Complete verification: Full re-inspection including all measurements, document review, and device functionality check. Required at intervals defined by the standard and the site’s regulatory classification — typically every two years for regulated sites, though the specific interval depends on the decree applicable to the installation.

3. Verification report contents

Each verification report must record: date and verifier identity, list of components inspected, measurement results (earth resistance, continuity values), photographs of key connection points and the device, device serial number and test certificate reference, any nonconformities found, and required corrective actions with a deadline.

4. Testable PDAs and maintenance efficiency

Pro Tip:Specify testable PDA devices contractually whenever rooftop access is restricted or costly. A testable device allows the verifier to confirm post-impact functionality from a ground-level interface, eliminating the need for a full rooftop intervention for every complete verification cycle. Include the requirement in the procurement specification and confirm the manufacturer provides the compatible test interface.

What Annex C requires and how to assess manufacturer certificates

Annex C of NF C 17-102 defines the test procedures that a PDA device must pass before it can be specified on a compliant installation. Understanding what those tests cover lets you read a manufacturer certificate critically rather than accepting it at face value.

Annex C test categories:

• Electrical performance tests: Verify that the device produces a measurable upward leader advance (ΔT) under standardized high-voltage impulse conditions. The measured ΔT must meet or exceed the manufacturer’s claimed value.
• ΔT measurement protocol: Conducted in an accredited high-voltage laboratory using the impulse generator setup defined in the annex. The test compares the device’s upward leader initiation time against a reference Franklin rod under identical conditions.
• Mechanical endurance tests: Confirm that the device withstands wind loads, vibration, and thermal cycling without structural failure or degradation of electrical performance.
• Environmental tests: Assess resistance to corrosion, UV exposure, and temperature extremes relevant to outdoor installation conditions.

Certificate checklist — what to require from the manufacturer:

• Full test report from an accredited laboratory (COFRAC accreditation or equivalent), not a summary sheet.
• Measured ΔT value (not nominal), with the test conditions stated.
• Device serial number or batch reference traceable to the tested unit.
• Environmental class and mechanical load rating.
• Test date and certificate validity period.
• Confirmation that the tested device configuration matches the supplied device (same model, same internal components).

When reading a test report, focus on three numbers: the measured ΔT (compare it to the value used in your Rp calculation — they must match), the peak current the device was tested to (relevant for protection level selection), and the environmental class (must match the site’s exposure conditions).

Questions to ask the manufacturer during procurement:

• Is the test report from a COFRAC-accredited or equivalent laboratory?
• Does the certificate cover the exact model and configuration being supplied?
• What is the certificate renewal schedule, and will updated certificates be provided for long-term maintenance contracts?
• Is the device testable post-impact, and what interface or tool is required for the test?
• Are replacement components available, and do they require re-certification?

Incomplete documentation at procurement is the single most common reason a DOE fails its initial verification. Requiring these items before the purchase order is signed costs nothing and saves significant rework later. Indelec’s new test certificates page provides additional context on current certificate requirements.

Tools, maps, and references practitioners need before finalizing a study

Getting the normative text and the right calculation inputs in hand before starting a study is not optional — it is where errors begin when skipped.

Where to obtain the normative text:

• The AFNOR boutique sells the full NF C 17-102:2011 text. An English-language version of the same standard is also available through the AFNOR store for bilingual project teams.
• AFNOR’s normalization portal allows practitioners to confirm the current revision status and check for any amendments or corrigenda issued after September 2011.

Ng maps (Annex B):

Annex B of the standard provides the ground flash density (Ng) maps for France, expressed in flashes per km² per year. Ng is an input to the risk assessment that determines the required protection level. Météo-France publishes updated lightning density data that can supplement or replace the annex maps for more precise local values. Always state the Ng source in the DOE.

Calculation tools:

LPS Manager is a software tool used in the industry to automate Rp calculations and generate reports compatible with both NF C 17-102 and IEC 62305. Several manufacturers also provide their own calculation aids. These tools are useful for checking arithmetic and formatting reports, but they do not replace the designer’s responsibility to verify inputs — particularly ΔT, h, and the applicable D value. Always cross-check software outputs against the formula manually for at least one device placement per project.

Resource list for practitioners:

• AFNOR NF C 17-102 product page — purchase the normative text.
• QUALIFOUDRE/INERIS professional note — mandatory reading for F2C/QUALIFOUDRE practitioners.
• Indelec lightning standards overview — practical crosswalk between NF C 17-102 and IEC 62305.
• Indelec lightning protection planning workflow — five-step workflow for designers and contractors.
• LPS Manager (third-party software) — for automated Rp calculation and report generation; confirm outputs against the normative formula.

Indelec’s field checklist for a compliant dossier d’exécution

This checklist reflects the documentation and site verification items that consistently determine whether a DOE passes or fails initial verification. Use it at each project phase.

Site survey and device selection:

• Record site address, structure dimensions, occupancy type, and Ng value from Annex B or Météo-France data.
• Confirm the required protection level from the risk assessment (not from client preference alone).
• Select a PDA device with a manufacturer test certificate stating a measured ΔT from an accredited laboratory.
• Verify that the device’s environmental class matches the site’s exposure (coastal, industrial, standard).

Calculation and placement validation:

• Run the Rp formula for each device placement using the confirmed h, D, and ΔT values.
• Apply the 40% safety coefficient if the site is subject to the October 4, 2010 decree.
• Confirm that the combined coverage of all devices leaves no unprotected zone on the plan.
• Document every variable and intermediate result in the DOE — not just the final Rp.

Conductor routing and earth electrode:

• Show conductor routing on elevation drawings with bend radii and separation distances annotated.
• Specify earth electrode type, material, and target resistance value in the DOE.
• Confirm that the test link is accessible and labeled before handover.

Site acceptance measurements:

• Earth resistance measurement (Wenner method or fall-of-potential), result recorded in the DOE.
• Continuity test of each down-conductor from PDA tip to earth electrode.
• Device serial number recorded and matched to the test certificate in the DOE.
• Photographs of PDA installation, conductor routing, bonding connections, and earth electrode test link.

Contractual clauses to require from suppliers:

• Full Annex C test report (not a summary) from a COFRAC-accredited or equivalent laboratory.
• Guarantee certificate tied to the device serial number.
• Maintenance plan specifying inspection intervals and testable-device verification procedure.
• Commitment to provide updated certificates if the device model is modified.

Pro Tip:The minimum the DOE must contain for a third-party verifier to approve without an additional site visit is: the Rp calculation with all variables, the manufacturer test certificate with traceable serial number, the as-built drawing with device placement and conductor routing, and the commissioning measurement results. If any one of these four items is missing or incomplete, expect a return visit.

What practitioners consistently get wrong on real projects

The most persistent errors on PDA/ESE installations are not exotic. They are the same mistakes repeated across projects of different sizes and sectors, and most of them are avoidable with a disciplined pre-commissioning review.

Misreading ΔT. Designers sometimes use the manufacturer’s nominal or maximum ΔT value rather than the measured value from the test certificate. The difference can be significant — a nominal value of 60 µs versus a measured value of 40 µs changes Rp materially and can leave parts of the structure outside the protection zone. Always use the measured value from the Annex C test report.

Omitting it produces an Rp that looks compliant on paper but is not. This error typically surfaces during a regulatory audit, not during initial verification, which makes it harder to correct after the fact.

Incomplete DOEs. The most common reason a verification fails is a DOE that is missing one or more required elements: no as-built drawing, no commissioning measurement results, or a test certificate that does not match the installed device’s serial number. These are administrative failures, not technical ones, and they are entirely preventable.

On-site installation errors. Down-conductors routed through cable trays shared with power cables, earth electrode test links buried under concrete, and bonding connections made with undersized clamps are the three findings that appear most often during Indelec’s site inspections. Each one is visible during a pre-commissioning walk-through if you know what to look for.

Negotiating documentation with manufacturers and installers works best when the requirements are stated in the purchase order and the installation contract, not requested after the fact. Requiring the full Annex C test report, the guarantee certificate, and the maintenance plan as conditions of final payment gives you leverage that disappears once the invoice is settled.

Indelec delivers compliant PDA/ESE installations from study to maintenance

For engineers and contractors who need a complete NF C 17-102–compliant solution without managing each component separately, Indelec covers the full project lifecycle. Site surveys and risk assessments establish the correct protection level and Ng inputs. Complete design studies produce the Rp calculations, device placement plans, and DOE documentation your verifier needs. The Prevectron3 air terminal is Indelec’s flagship PDA device, supplied with full Annex C test certificates and a traceable guarantee certificate, and available in testable configurations for sites where post-impact verification matters.

Installation teams work to the execution drawings produced in the study phase, so the as-built documentation matches the DOE from day one. Maintenance contracts cover visual and complete verifications at the intervals required by the standard and the applicable decree, with testable-device checks reducing rooftop interventions where specified.

To discuss a project at the design stage, pre-procurement, or for a periodic verification, contact Indelec through the lightning protection services page.

Sources

• Norme NF C17-102
• Note d’informations aux professionnels de la protection contre la foudre (Qualifoudre / INERIS)

Recommended

• Évolution des normes NF c 17-102 : guide 2026
• Essential grounding standards: ensure compliance and safety
• Concepts de norme NFC 17-102 : guide pour les professionnels
